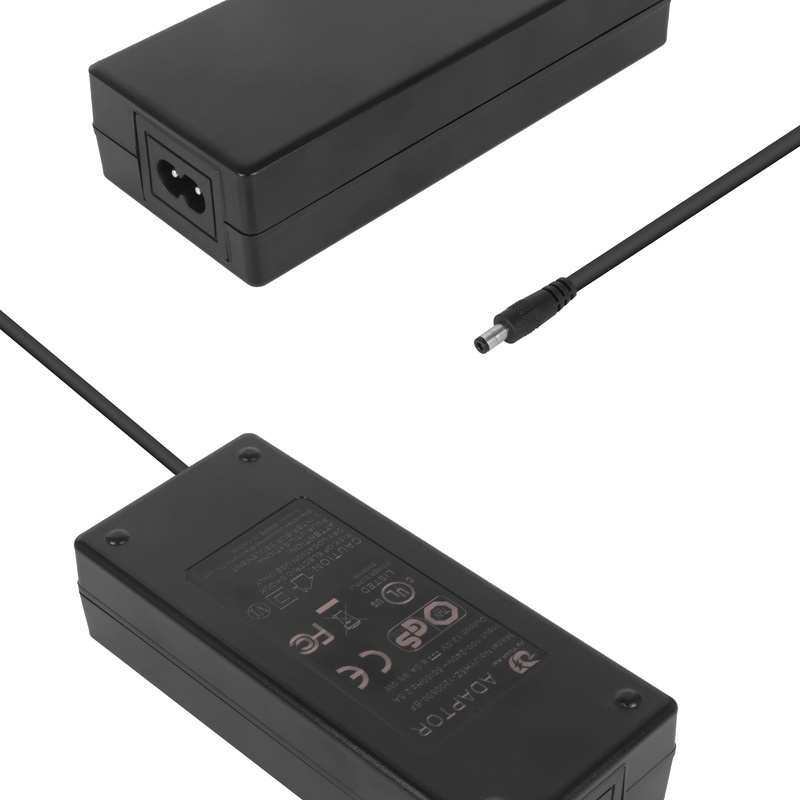

JYH5Z Series 96W Adapter
JYH5Z Series 96W Adapter
JYH5Z Series 96W Adapter
JYH5Z Series 96W Adapter
JYH5Z Series 96W Adapter
JYH5Z Series 96W Adapter

JYH5Z Series 96W Adapter

Product Features:

Operating temperature range: -20℃ to +40℃

High reliability, Ⅵ-level energy efficiency, low ripple noise

Output short circuit, over current, over voltage protection

EMI: EN55032/EN55014/CISPR32/CLASS B

Safety: UL/EN/IEC/BS62368, EN/IEC61558 and other standards

Compliant with ROHS and REACH regulation

Compatible with 5.5X2.1/5.5X2.5/TYPE-C and other various connectors

Inquiry Now+

Table

Input  Voltage Output Voltage Output Current Watt Size Safety
100-240VAC 50/60Hz 5.0-8.9V 0.01-12.0A 60.0W L140*W60.5*H33mm CUL,FCC,GS,CE, RCM,SAA,PSE
9.0-17.9V 0.01-8.00A 96.0W
18.0-48.0V 0.01-6.80A 96.0W

Applications

Product Customization

We offer flexible power adapter OEM/ODM customization services to global customers, ranging from standard products to highly customized ones, fully meeting the diverse market demands.

1. Power adapter: Power output is within 1000W.

2. Appearance size and color, input plug/output connector. Brand and model can be freely selected.

3. Safety certification. Choose the certification according to the customer's own requirements.

4. Based on the usage scenarios of the customer's products, select the brand and model of the raw materials.

5. Brand support, helping customers quickly establish their own brands;

6. Application scenarios: Consumer electronics, smart home, security monitoring, household appliances, industrial control, network communication, etc.

Customized product+
